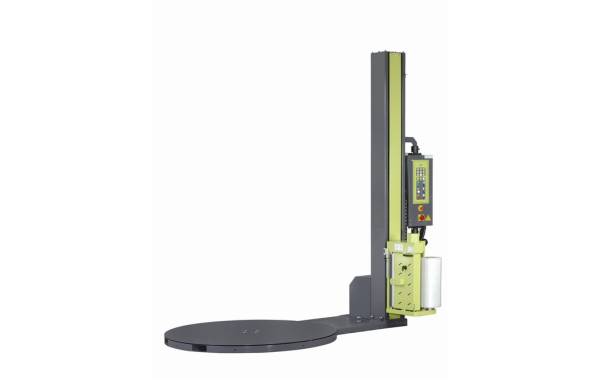

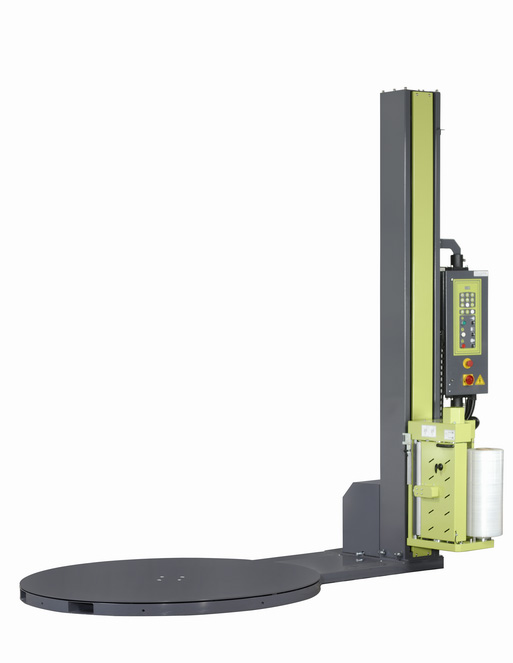

Stretch Wrapper EXP-108

Quick Enquiry
The Exp-108 is by far our biggest selling machine over the last 7 years during which time it has proven to be both user friendly and reliable. Although this machine will ultimately be replaced by the Exp-103 we plan to still keep this machine is a range for a while yet especially as we have so many existing customers looking for additional machines.
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5

Stretch Wrapper Standard Features:

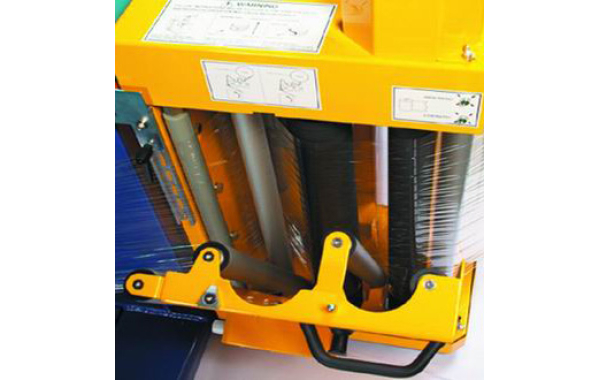

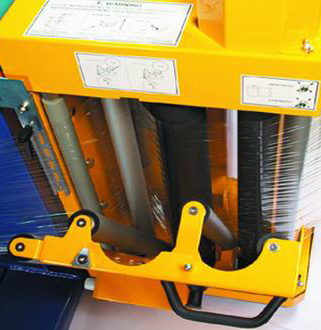

  • 200 or 250% power pre-stretch
  • 1650mm turntable
  • 2500mm wrapping height
  • Cuts film at the end of the wrap cycle
  • Secure top sheet function reduces the risk of water damage if pallet left outside
  • Home position: the turntable always stops at the same position
  • Adjustable film carriage speed
  • Choose between 0-9 wraps at the top and bottom of the pallet
  • Features both automatic and manual wrapping cycles
  • Automatically applied reinforce wrap
  • Turntable speed adjustable from 0-12rpm
  • Adjustable pallet height photo sensor
  • Soft start and stop
  • Machine can be paused during cycle

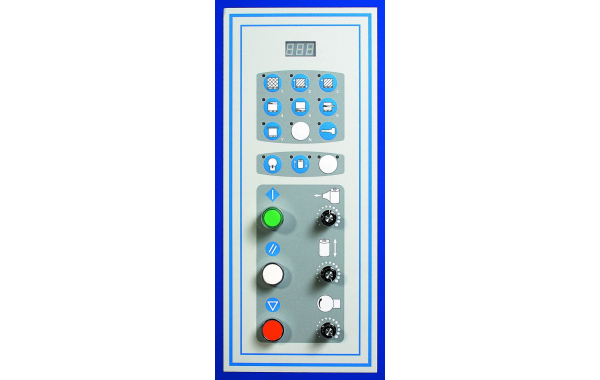

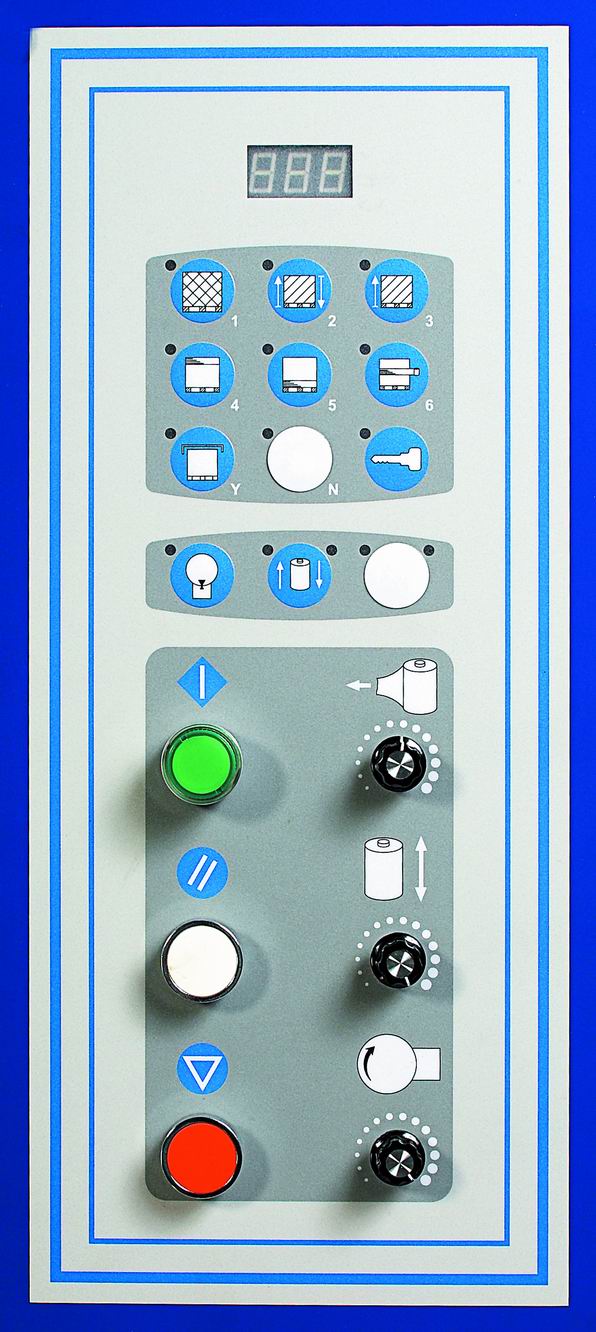

  • Trouble shooting shown on screen
  • Magnetic brake holds turntable still during loading/unloading
  • Audible warning when cycle starts

Stretch Wrapper Standard Options:

  • Multi-positional ramp for hand pallet trucks (1200 kilos maximum load weight)
  • Extra long ramp for use with powered pallet trucks
  • Pit Frame
  • 1800mm Turntable (2000 kilos max load)

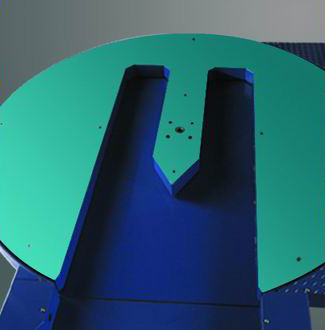

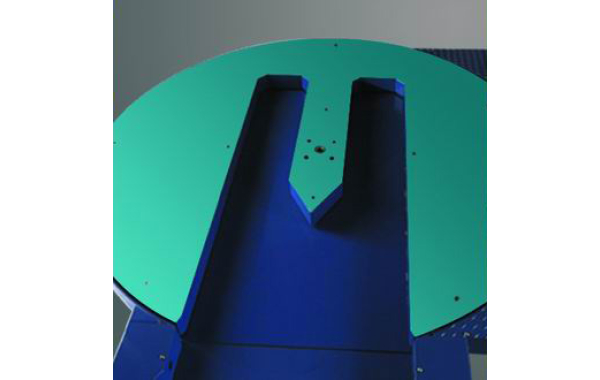

  • Horse Shoe Style Turntable (Special Order)
  • Pallet height sensor for dark loads

Stretch Wrapper Specifications:

  • Max. wrapping height:2500mm
  • Max. turntable speed 12rpm
  • Max. loading weight 1650kgs
  • Roll width:500mm
  • Roll outer dia:250mm
  • Roll inner dia:76mm
  • Foot print 1650mm x 2868mm
  • Power consumption 1.2 kw
  • Power supply: single phase

Stretch Wrapper Safety Features:

  • Conforms to current HSE legislations
  • Safety cut-out on film carriage and control panel
  • Height limitation sensors
  • 600mm gap between the edge of the turntable and the nearest fixed point

Stretch Wrapper Warranty Information:

  • Free 12 months parts, labour & travel warranty (terms & conditions apply)
  • Extend your warranty for up to 5 years for long term peace of mind
