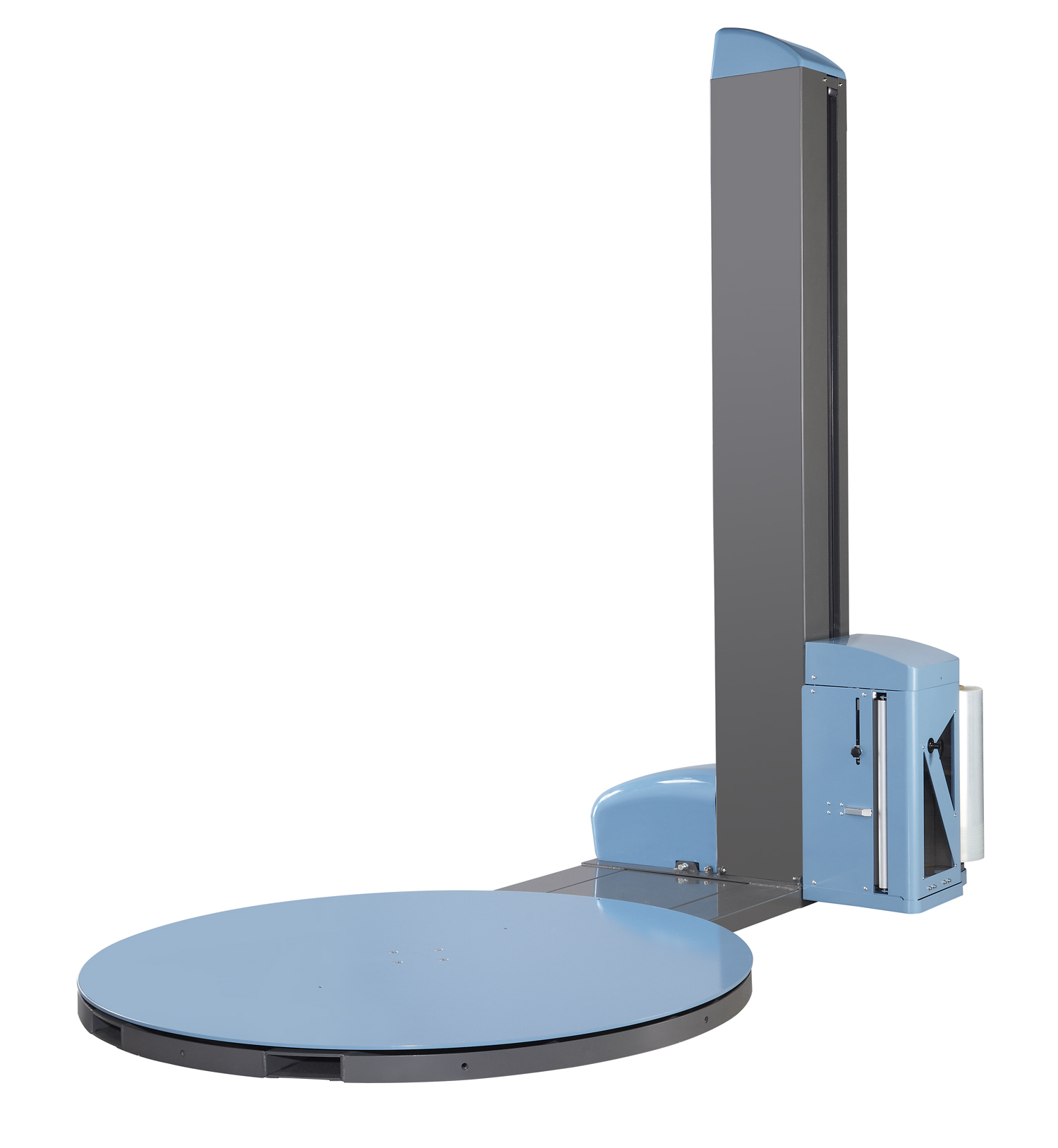

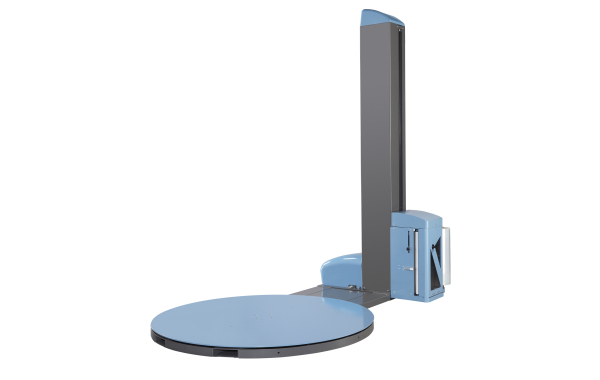

Stretch Wrapper EXP-133

Quick Enquiry
The new Exp-133 is our top of the range semi automatic machine with industry leading programmability. It features 5 independent wrap programs that are password protected to ensure you apply the exact amount of film to every pallet for maximum security & minimum cost every single time. So advanced you can even set the tension levels for different stages of the cycle; an excellent feature for unstable loads or sharp corners. Despite all the all this the machine is still very simple to program.
Thumbnail 1

Stretch Wrapper Standard Features:

  • From 100 to 300% electronically controlled power pre-stretch
  • 5 independent password protected wrap programs
  • 1650mm turntable
  • 2200mm wrapping height
  • Cuts film at the end of the wrap cycle
  • Secure top sheet function reduces the risk of water damage if pallet left outside
  • Home position: the turntable always stops at the same position
  • Separate adjustable film carriage speed for both up & down cycle
  • Choose between 0-9 wraps at the top and bottom of the pallet
  • Features both automatic and manual wrapping cycles
  • Automatically applied reinforce wrap
  • Turntable speed adjustable from 2-12rpm
  • 3 Stage adjustable electronic tension control for top, middle & bottom of pallet
  • Adjustable pallet height photo sensor
  • Soft start and stop
  • Machine can be paused during cycle
  • Trouble shooting shown on screen
  • Magnetic brake holds turntable still during loading/unloading
  • Audible warning when cycle starts

Stretch Wrapper Standard Options:

  • Multi-positional ramp for hand pallet trucks (1200 kilos maximum load weight)
  • Extra long ramp for use with powered pallet trucks
  • Pit Frame
  • 1800mm Turntable (2000 kilos max load)
  • 2600mm & 3000mm Wrapping Height (3m is Special Order)
  • Horse Shoe Style Turntable (Special Order)
  • Pallet height sensor for dark loads

Stretch Wrapper Specifications:

  • Max. Wrapping height:2200mm
  • Max. Turntable speed 12rpm
  • Max. Loading weight 2000kgs film
  • Roll width:500mm film
  • Roll outer dia:250mm film
  • Roll inner dia:76mm
  • Foot print 1650mm x 2468mm
  • Power consumption 1.2 kw
  • Power supply: single phase (not suitable for rcd protected socket)

Stretch Wrapper Safety Features:

  • Conforms to current HSE legislations
  • Safety cut-out on film carriage and control panel
  • Height limitation sensors
  • 520mm gap between the edge of the turntable and the nearest fixed point
  • Anti drop film carriage

Stretch Wrapper Warranty Information:

  • Free 12 months parts, labour & travel warranty (terms & conditions apply)
  • Extend your warranty for up to 5 years for long term peace of mind
