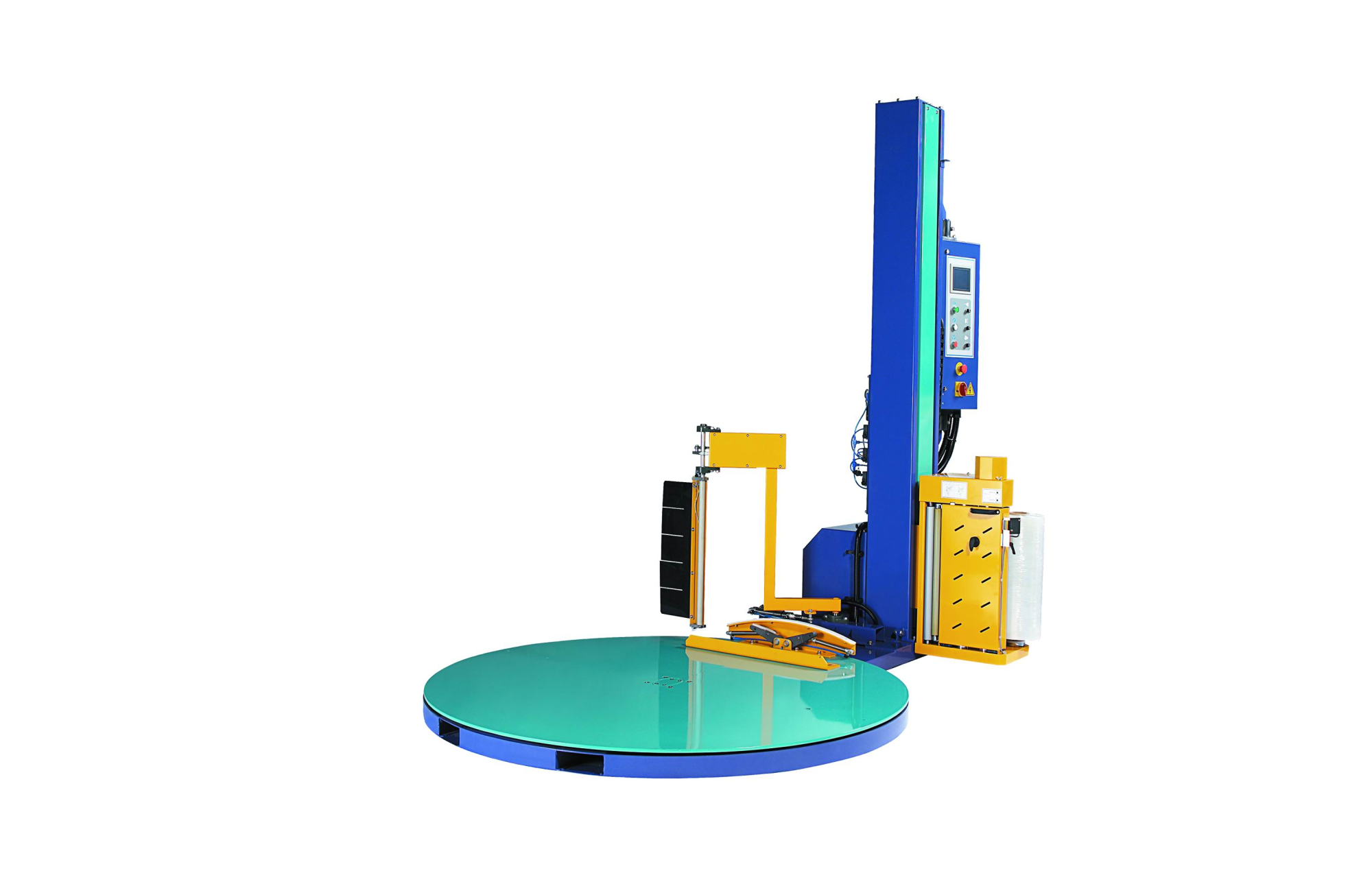

Stretch Wrapper EXP-501
The Exp-501 is a traditional turntable type machine that has been designed to be as automatic as possible. Once the film has been loaded into the film jaw clamps there is no need to attach the film to the pallet in the normal way. At the end of the cycle the machine cuts the film with a hot wire, secures the tail end on to the pallet and then grips the film ready for the next load. It even comes with a remote control so if loaded by a lift truck the driver does not have to get out of his vehicle.
Stretch Wrapper Standard Features:
- 1800mm turntable
- 2500mm wrapping height
- Up to 250% pre-stretch

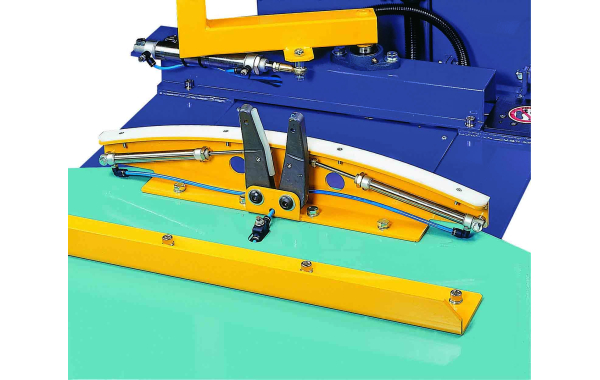

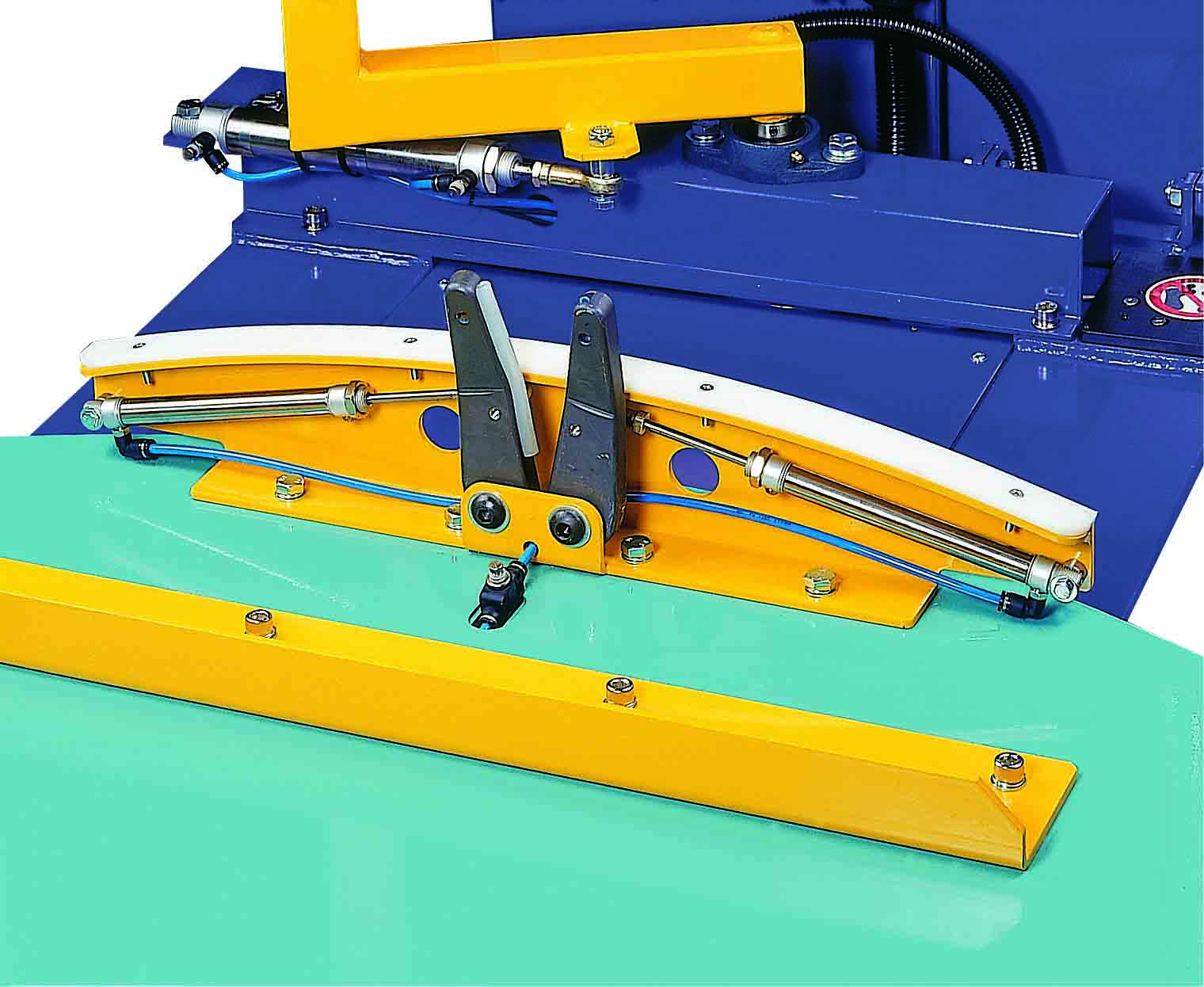

- Cuts and grips film at the end of the wrap cycle
- Home position: the turntable always stops at the same position
- Choose between 0-9 wraps at the top and bottom of the pallet
- 3 Wrap options
- Turntable speed and carriage speed both adjustable
- Adjustable electronic tension control
- Adjustable pallet height photo sensor
- Soft start and stop
- Machine can be paused during cycle
- Reset button returns the carriage and turntable to the home position

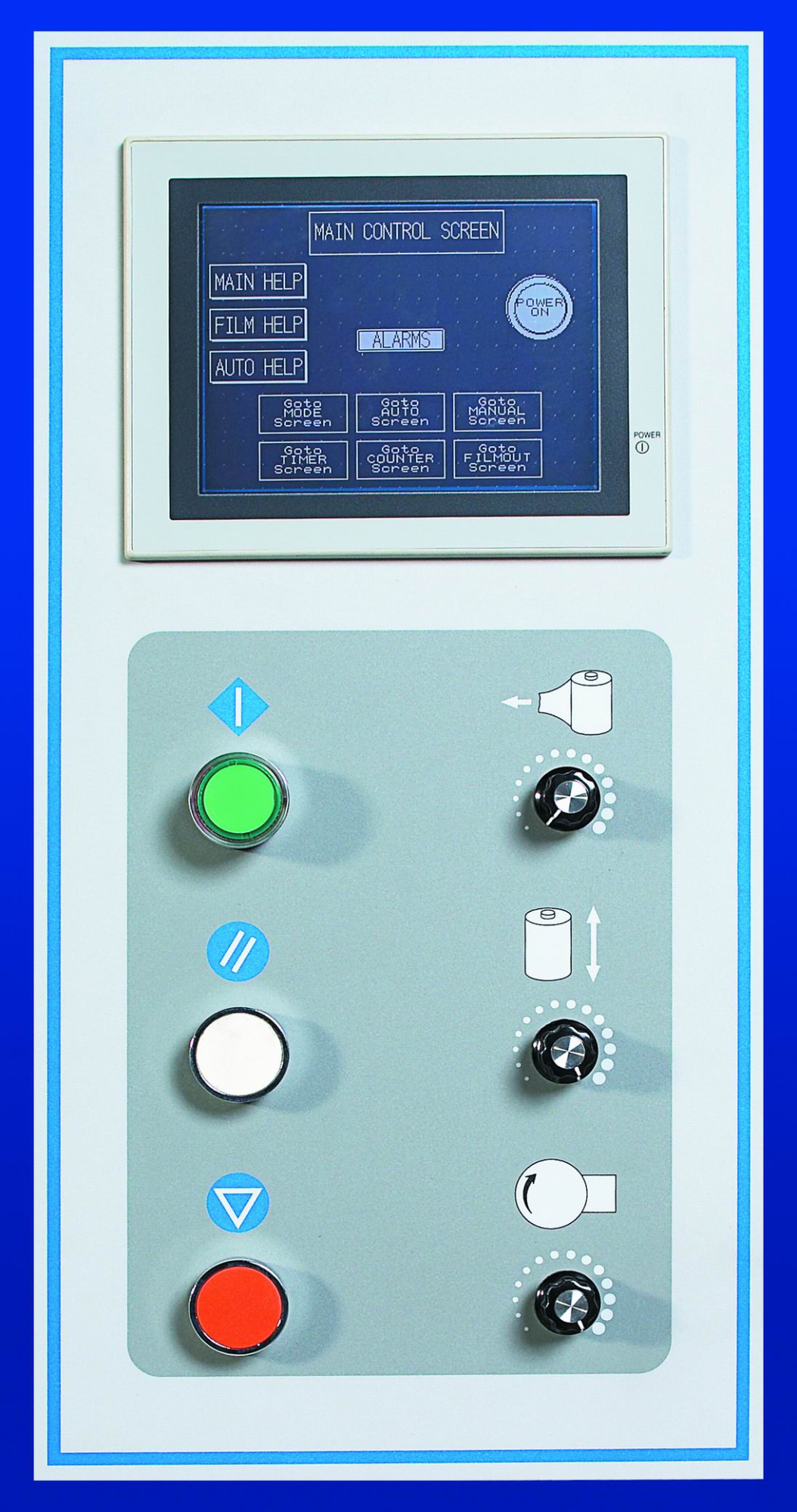

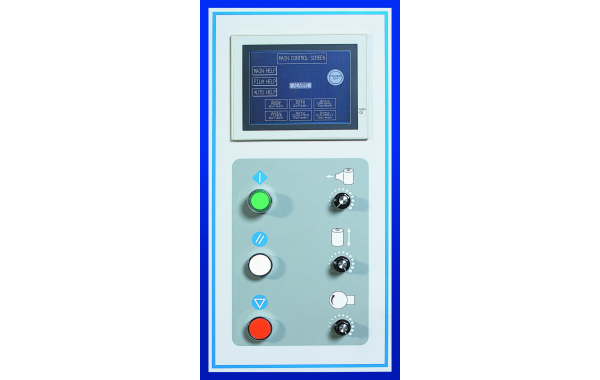

- 180° Rotating Control Panel with touch screen control
- Trouble shooting shown on screen
- Remote control
- Automatic clamp holds turntable still during loading/unloading
- Audible warning when cycle starts
Stretch Wrapper Standard Options:
- Pit Frame
- 2000mm & 3000mm Wrapping Height (Special Order)
- Up to 300% pre-stretch
- Heavy duty ramp
- Pallet height sensor for dark loads
Stretch Wrapper Specifications:
- Max. Wrapping height:2500mm
- Max. Turntable speed: 12rpm
- Max. Loading weight: 2000kgs
- Turntable dia:1800mm as standard
- Film roll width:500mm
- Film roll outer dia: 250mm
- Film roll inner dia:76mm
- Machine size:2550mm (l) x 1800mm (w) x 2850mm (h)
- Power supply:single phase - requires connection to an air supply
Stretch Wrapper Safety Features:
- Conforms to current HSE legislations
- Safety cut-out on film carriage and control panel
- Height limitation sensors
Stretch Wrapper Warranty Information:
- Free 24 months parts, 12 months labour & travel warranty (terms & conditions apply)
- Extend your warranty for up to 5 years for long term peace of mind
