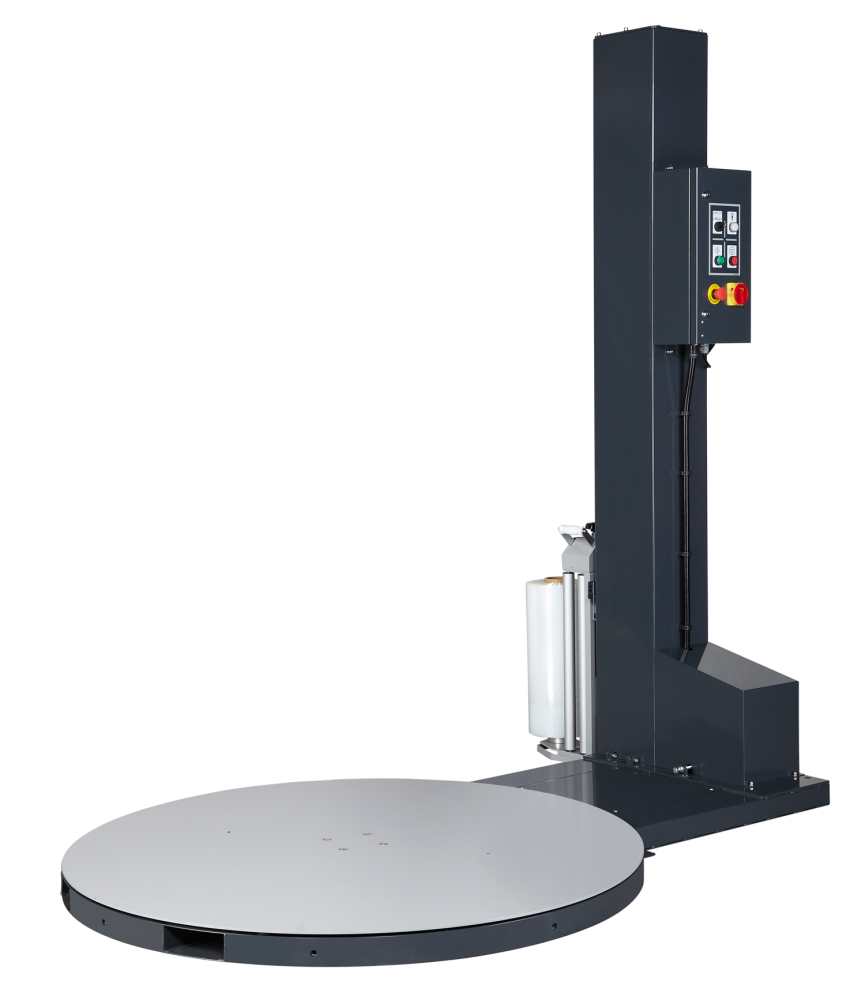

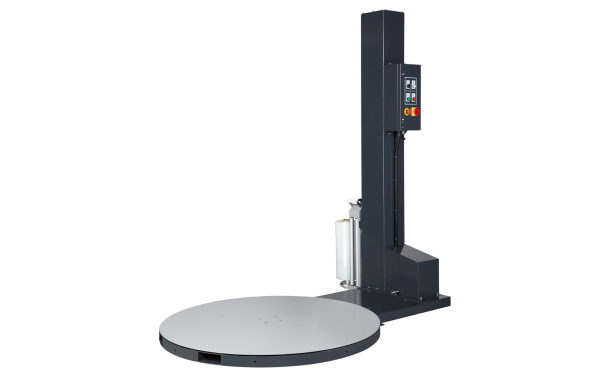

Stretch Wrapper TMD-P26BRAKE

Quick Enquiry

The TMD-P26Brake is the lowest price machine in our range. The aim is to provide a machine that will improve productivity and the quality / security of the load but for a budget price. The wrap settings and speeds on the P26Brake are all pre-set but to a level that most customers will find satisfactory.

Should you require more control over the amount of film the machine applies to the pallet we would recommend the Exp-403 or Exp-303.

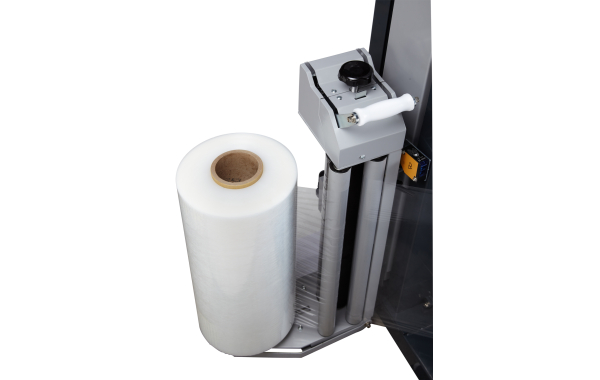

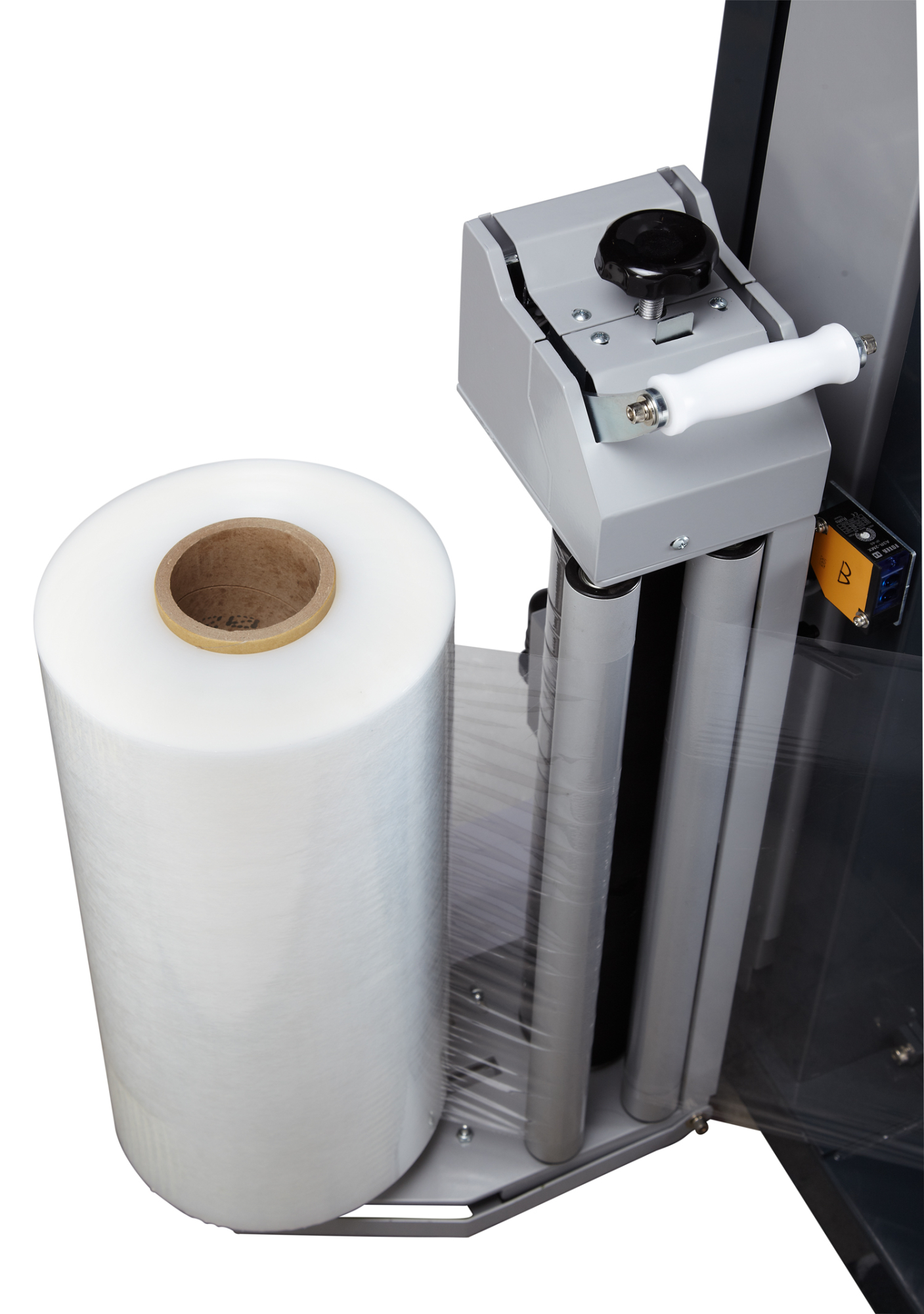

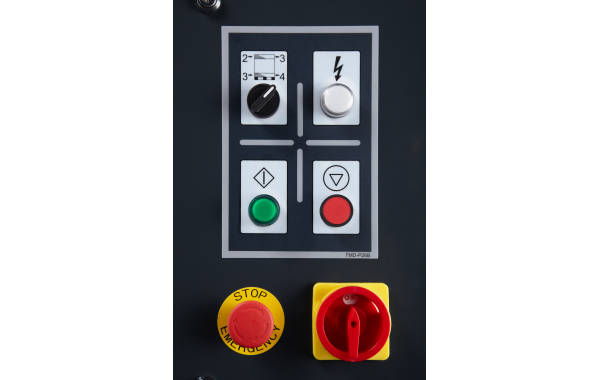

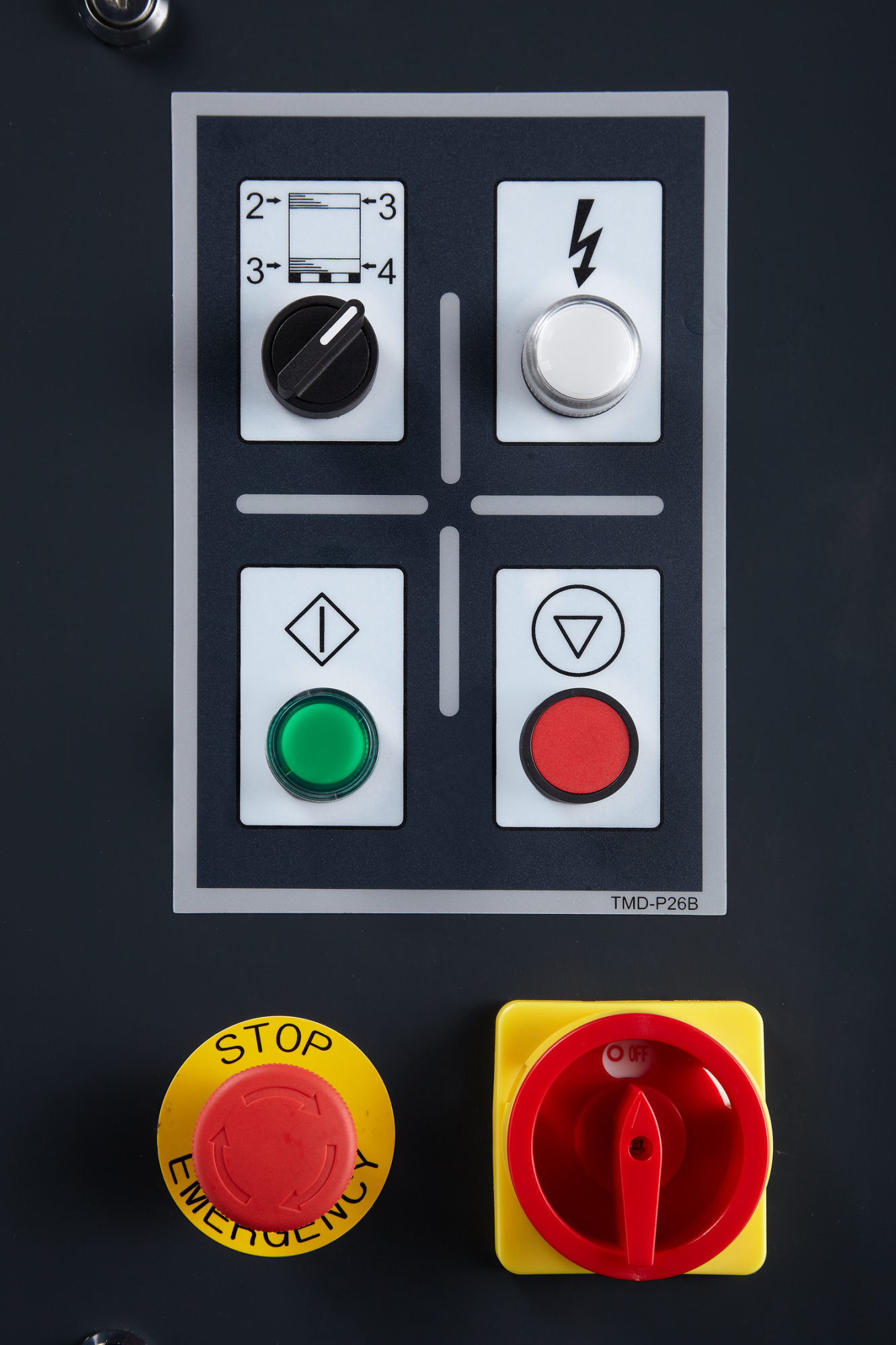

Having the film carriage on the opposite side to the control panel allows for the smallest possible footprint.

image 1

image 2

image 3

Thumbnail 1 Thumbnail 2 Thumbnail 3

Stretch Wrapper Standard Features:

1650mm turntable
2200mm wrapping height
Spring brake stretch
Home position: the turntable always stops at the same position
Choose between 3 bottom & 2 top wraps or 4 bottom & 3 top
Adjustable tension with quick release
Soft start and stop
Machine can be paused during cycle
Magnetic brake holds turntable still during loading/unloading
Audible warning when running a cycle

Stretch Wrapper Standard Options:

Multi-positional ramp for hand pallet trucks (1200 kilos maximum load weight)
Extra long ramp for use with powered pallet trucks
Pit Frame

Stretch Wrapper Specifications:

Max. wrapping height: 2200mm
Max. turntable speed 10rpm
Max. loading weight 1650kgs
Film roll width: 500mm
Film roll outer dia: 250mm
Film roll inner dia: 76mm
Footprint 1650mm x 2400mm
Power supply: single phase 0.8 kw

Stretch Wrapper Safety Features:

Conforms to current HSE legislations
Safety cut-out on film carriage and control panel
Height limitation sensors
500mm gap between the edge of the turntable and the nearest fixed point
Audible warning when running a cycle

Stretch Wrapper Warranty Information:

Free 12 months parts, labour & travel warranty (terms & conditions apply)
Extend your warranty for up to 5 years for long term peace of mind

Download PDF View All Turnable Pallet Wrap Machines
